Waste drainage
Waste water needs a suitable drain point, such as a toilet bowl or laundry waste pipe, depending on where the unit is installed.
Before You Buy
CatGenie Installation Guide
Install your CatGenie in a bathroom, laundry or utility area
CatGenie connects to three essentials: cold water, waste drainage and power. Most standard homes can use a DIY-style setup with the included connector, making it a practical option for bathrooms, laundries and utility spaces.
DIY friendly
No plumber needed for most standard setups.
3 connections
Cold water, waste drainage and power.
Local support
Call CatGenie Australia on 1300 228 436.
Installation basics
What does CatGenie need?
Before choosing a position, confirm the area has these three connection points within practical reach of the unit.
Cold water supply
CatGenie uses a cold water connection. In most setups, the supplied T-adapter is used to share an existing water line.
Power outlet
The unit also needs access to a standard power outlet. Keep plugs, cords and connections positioned safely away from standing water.
Choose the right room
Where should CatGenie go?
The best location is usually the room that gives you the cleanest access to cold water, waste drainage and power without creating trip hazards or awkward hose runs.
A
Bathroom
Connect near a toilet or suitable sink line. Waste can drain into the toilet using the drain hook.
B
Laundry
Share the cold water supply and waste pipe used by the washing machine.

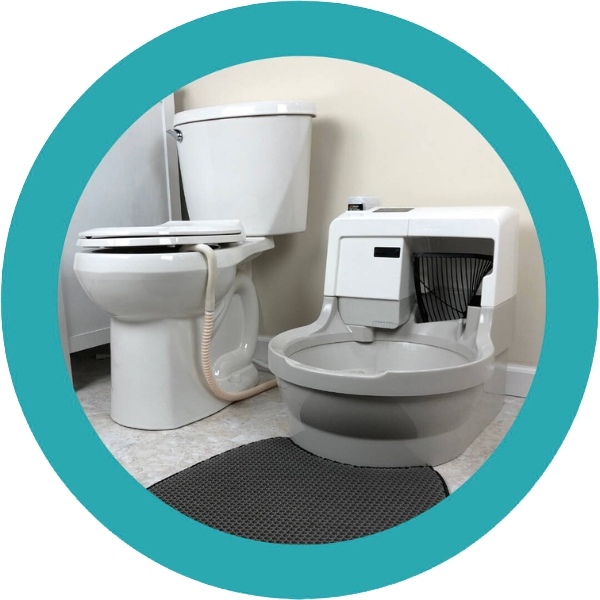

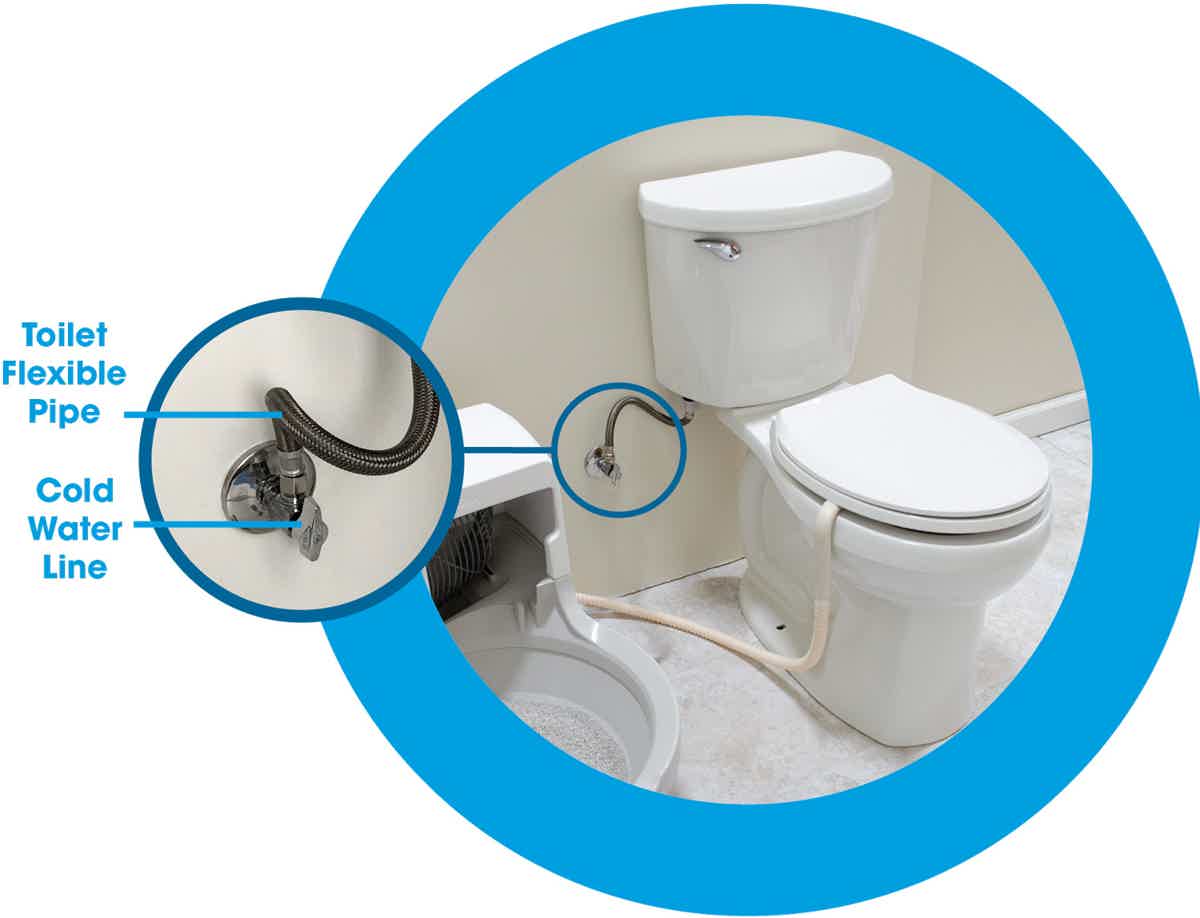

Bathroom connection
How CatGenie works in the bathroom
In a bathroom, CatGenie can share the cold water line used by the toilet or a suitable sink connection. The waste line drains into the toilet bowl.
Connect to cold water and drain into the toilet
The bathroom setup is generally straightforward when there is a flexible cold water hose and enough space to place the unit safely.
1
Position the unit
Place CatGenie where your cat can access it easily and the hose runs are not stretched or kinked.
2
Use the T-adapter
The included connector redirects cold water from the existing line to CatGenie.
3
Hook the drain line
The drain hook sits on the toilet bowl so waste water can drain away cleanly.
Tip: If the existing water line is rigid pipe, it may need to be replaced with a suitable flexible hose before installation.

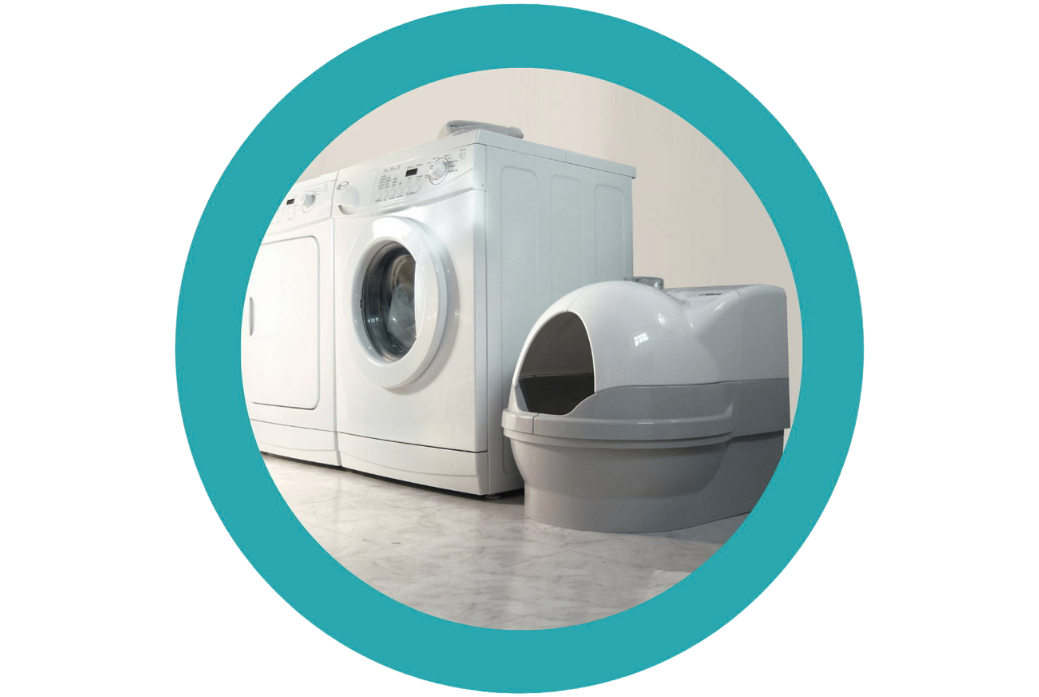

Laundry connection
How CatGenie works in the laundry
In a laundry, CatGenie can share the cold water supply and drain pipe used by the washing machine. This is often one of the cleanest installation options because both water and waste access are already in the same area.
1
Share the cold tap
Use the supplied T-adapter to connect CatGenie to the cold water line.
2
Place the drain hose
The CatGenie drain hose can sit alongside the washing machine drain hose in the laundry waste pipe.
3
Check clearance
Confirm the unit is level, stable and positioned where your cat has clear entry access.
Keep hoses secure and avoid placing them where they can be pulled loose by pets, children or normal laundry use.
Quick install flow
The basic setup process
Use this as a simple planning guide before following the full CatGenie manual for your specific model.
1
Choose location
Pick a bathroom, laundry or utility area with water, waste and power nearby.
2
Connect water
Use the correct connector to share a cold water supply.
3
Set drain line
Place the drain hose into the toilet or laundry waste pipe.
4
Plug in safely
Use a suitable power outlet and keep connections protected.
5
Run setup
Follow the model manual, then introduce your cat gradually.
Fit check
Before you install
Confirm these points before opening fittings or moving the unit into place.
- ✓ The chosen room has a cold water connection within practical hose reach.
- ✓ There is a suitable waste drainage point, such as a toilet or laundry drain pipe.
- ✓ The unit can sit level, stable and accessible for your cat.
- ✓ The power outlet can be used safely without creating a wet-area hazard.
- ✓ Non-standard plumbing, rigid pipe or unusual fittings have been checked before installation.
Installation FAQ
Common setup questions
Do I need a plumber to install CatGenie?
Most standard installations do not require a plumber. If your home has rigid pipe, non-standard fittings, difficult access or wet-area compliance concerns, use a qualified plumber.
Can CatGenie be installed in a laundry?
Yes. A laundry is often suitable because CatGenie can share the washing machine cold water supply and waste drain pipe.
Can CatGenie drain into the toilet?
Yes. In a bathroom setup, the drain hook can sit on the toilet bowl so waste water drains into the toilet.
What if my water line is a rigid pipe?
A rigid pipe may need to be replaced with a suitable flexible hose before CatGenie can be connected. Check the fitting type before starting.
Need help choosing the right setup?
Contact CatGenie Australia before installing if you are unsure about your water connection, drain position or room layout.
